UTP Video CCTV

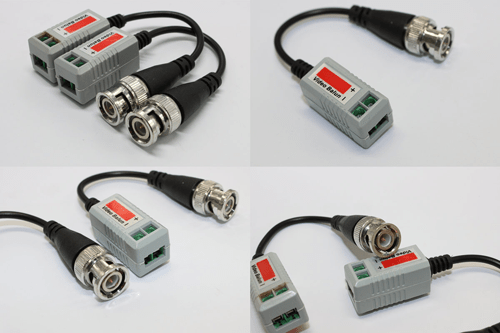

The UTP Model UTP101P-II Video Transceiver is a passive ( non amplified ) device that allows the transmission of real time monochrome or color video over unshielded twised pair ( UTP ) tkelphone wire. Baseband ( composite ) signal of any typeare supportedvideo_balun

Specification :

  • Attenuation : DC to 5 Mhz 0.5dB typ
  • Common mode / Differential mode rejection : 50KHz to 5 MHz 60dB type
  • Impedance : Coax, male BNC 75 Ω
  • UTP, RJ45 Date Connector : 100 Ω
  • Network Wiring : One Unshielded Twisted Pair 24 – 16 AWG ( 0,5 – 1,31mm )
  • Catergory Type : 5 or better
  • Impedance : 100±20Ω
  • DC Loop Resitance : 52Ω per 1,000ft ( 18Ω per 100m )
  • Differential Capacitance : 19 pF/ft max ( 62pF/m max )
  • Made ini China
  • Price : Rp. 65.000,-
